Recognized as the Most Efficient
of ENERGY STAR 2016

1) Windows must be ENERGY STAR qualified consistent with applicable ENERGY STAR Partner
    Commitments and the requirements set forth in the latest version of the ENERGY STAR Program
    Requirements Eligibility Criteria for Windows Version 5.0. Product performance (U-factor and SHGC)
    must be certified by an EPA-recognized certification body.

2) Products must be independently certified to meet the North American Fenestration
    Standard/Specification (NAFS) with a Performance Grade = 15. Acceptable certification bodies
    shall be accredited to operate in accordance with ISO/IEC Guide 65, by an accrediting body that is a
    signatory to the International Accreditation Forum Multilateral Recognition Agreement that operates
    in accordance with ISO/IEC 17011. NAFS certification does not require an EPA-recognized
    certification body.

3) Products must meet the applicable requirements shown in the table below:
     Note: SHGC = Solar Heat Gain Coefficient.

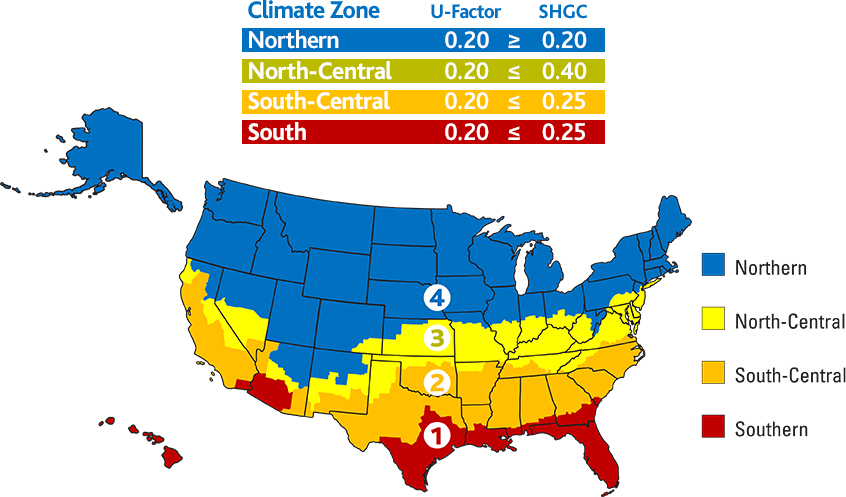

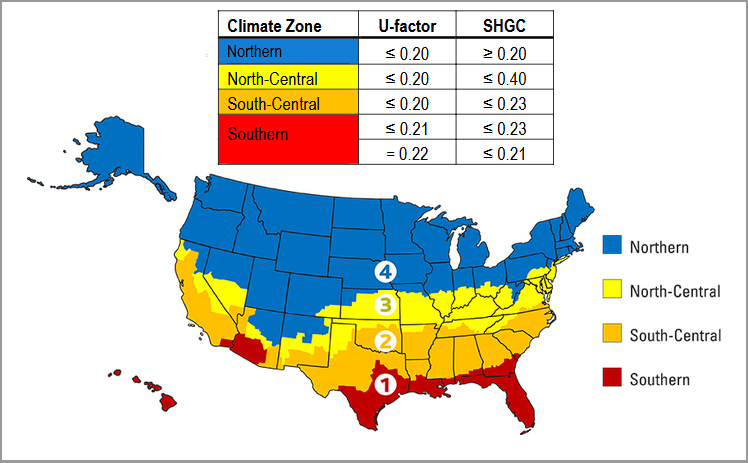

Climate Zones U-Factor and SHGC
Climate Zone Map



Foam Fill Option

• Keep Some Green in your pocket! Buy energy efficient windows
   insulated with ENVIRONMENTAL GREEN™ Foam.

• Not all vinyl-framed windows are created equal. Some are
   insulated; some are not. Your energy dollars could be leaking
   out of your window frames if they are not filled with
   ENVIRONMENTAL GREEN™ polyurethane foam - the same
   type of foam that insulates your refrigerator and thermos.

• Our window frames insulated with ENVIRONMENTAL GREEN™
   foam give you:

   ▶ Increased Energy Savings
   ▶ Lowers the U-Value which increases thermal performance

Maximize your window energy efficiency. Insist on
ENVIRONMENTAL GREEN™ polyurethane foam-filled
window frames.
Head, Sill and Jamb Foam Fill Options




EnergySmart Ultimate Plus2Energy Performance Ratings Ultimate2 with ArgonUltimate Plus2 with Krypton



Glass Options

Polaris windows feature Intercept® "Warm-Edge" technology that reduces condensation problems around the window perimeter. Compare the Intercept insulating glass window with a conventional insulating glass window.

Sealant Effectiveness & Gas Retention

The sealant provides the moisture vapor barrier for the I.G. unit. The longer the transmission path, the slower the rate that moisture will travel into the unit through the seal. STAINLESS Steel is Impervious to gas transmission, improving gas retention and Maximizing the insulation value of your window over time. Intercept® Stainless offers one of the best transmission paths to maximize window performance.
Intercept Stainless
